Short Description:

Ultra high pressure ultra low height hydraulic cylinder mainly used in space is very limited occasions, for example: Shipbuilding plant host adjustment, lifting of steam turbine maintenance in power plant and so on occasions.


  • :
  • Where to Buy

    For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

    Where to Contact

    For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

    Product Features



    The top end is provided with an elastic sealing piece to avoid the impurity into the cylinder, extending cylinder life.



    Top finite overflow port, when the plunger over stroke, automatic overflow, safe and convenient.



    Overload test pressure is 1.5 times higher than the rated working pressure.



    Compared with the same kind cylinder, the same closed height, there is a longer lift stroke.



    G1/4” coupler and dust cap included on all models.



    Field Applications



    Ship manufacturing, marine diesel engine maintenance and adjustment

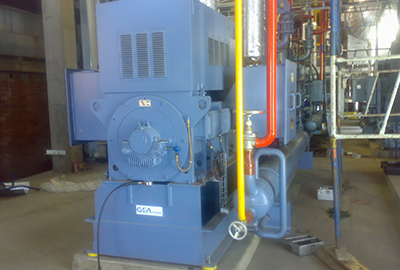

    The field application of screw compressor maintenance



    The field application of screw compressor maintenance

    Specs& Dims

    Model Working Pressure (MPa) Capacity (T) Collapsed Height A(mm) Stroke (mm) Outside Diameter D(mm) Effective Area (cm2 Oil Capacity (cm3) Plunger Diameter D(mm) Coupler Size Weight (kg)
    KET-STC-0510 150 5 30 10 60 3.46 3.5 21 G1/4″ 0.17
    KET-STC-01010 150 10 30 10 70 7.06 7.1 30 G1/4″ 1.1
    KET-STC-02510 150 25 30 10 90 17.34 17.3 47 G1/4″ 1.5
    KET-STC-05010 150 50 30 10 118 38.46 38.5 70 G1/4″ 2.6
    KET-STC-10010 150 100 33 10 152 69.36 69.4 94 G1/4″ 4.3
    KET-STC-15010 150 150 34 10 180 105.62 105.6 116 G1/4″ 6.8
    KET-STC-20010 150 200 35 10 204 136.77 136.8 132 G1/4″ 9

    Applications

    Shipbuilding engine adjustment applications<br /><br />
Screw compressor maintenance field application Synchronous lifting and replacement of rubber bearings in bridge construction<br /><br />

    Shipbuilding engine adjustment applications

     Screw compressor maintenance field application  Synchronous lifting and replacement of rubber bearings in bridge construction
