Self-elevation Synchronous Lifting Hydraulic System
Self-elevation Synchronous Lifting Hydraulic System

Self-elevation Synchronous Lifting Hydraulic System

Short Description:

Modular design, each lifting platform load 1000-20000T;
Multiple sets of on-site combination are used to meet wider needs;
Compact design, saving space;
System integration, can be used in conjunction with the weighing system to enhance stability;
Variable floor area, very suitable for different site use;
All systems are containerized to achieve cost-effective transportation.
Synchronous lifting of shield machine in place.
Synchronous lifting of drilling platform.


  • :
  • Where to Buy

    For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

    Where to Contact

    For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

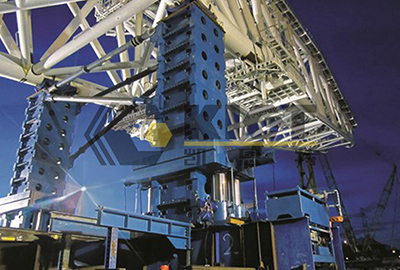

    The advantage of the Self-elevation Synchronous Lifting Hydraulic System is that it is easy to assemble on site. The concept behind the system revolves around 4 strong jacking bases. Two temporary supports fixed to a hydraulic turntable are incorporated on the top of the bases. With the starting beams in position above the supports and the jacks fully retracted, the first lines of beams can be automatically inserted between the supports, utilizing the integral Feed-in system. Once in location, the jacks extend and raise the beams above the temporary Supports. The supports are rotated before the jack lowers the beams onto the rotated Supports. This cycle is repeated until the required height is reached. Once the lift has been completed the whole system can be containerized ready for the next project. The control of the system will be done by computer from the special designed control room. All data like deck height, weight, ground settlement etc is collected on one location. This provides substantial levels of safety for the operation.

    Specs& Dims

    Model Capacity per Tower: (T/KN)   Max. Partial loading Base Frame Size (mm) Lifting Box Size Length × Width × Height (mm) Weight (kg)
    A B C D
    KET-JS-125 125(1250) 3%@6m 1200 1100 990 1850 600×600×250 2200
    KET-JS-700 250(2500) 3%@10m 2250 2050 1475 3450 1150×1150×500 7500
    KET-JS-500 500(5000) 4%@10m 2800 2300 1700 4500 1700×1700×700 13000
    KET-JS-250 700(7000) 5%@20m 3670 3250 2375 6100 2300×2300×1000 24000

    Applications

    Synchronous lifting of shield machine Synchronous lifting of oil rigs Synchronous lifting and installation of steel structure<br /><br /><br /><br /><br /><br />
    Synchronous lifting of shield machine Synchronous lifting of oil rigs Synchronous lifting and installation of steel structure
