Reasonable price 30 Ton Hydraulic Cylinder - Double Acting High Tonnage Pull Cylinder (BRL Series) – Canete

Adhering into the principle of "quality, provider, performance and growth", we now have gained trusts and praises from domestic and intercontinental consumer for Hydraulic Jack System, Hydraulic Car Jack Lift, 3/4" Hydraulic Torque Wrench, We are now on the lookout ahead to even larger cooperation with abroad consumers dependant on mutual added benefits. When you are interested in almost any of our products, be sure to experience cost-free to make contact with us for more facts.

---

Reasonable price 30 Ton Hydraulic Cylinder - Double Acting High Tonnage Pull Cylinder (BRL Series) – Canete Detail:

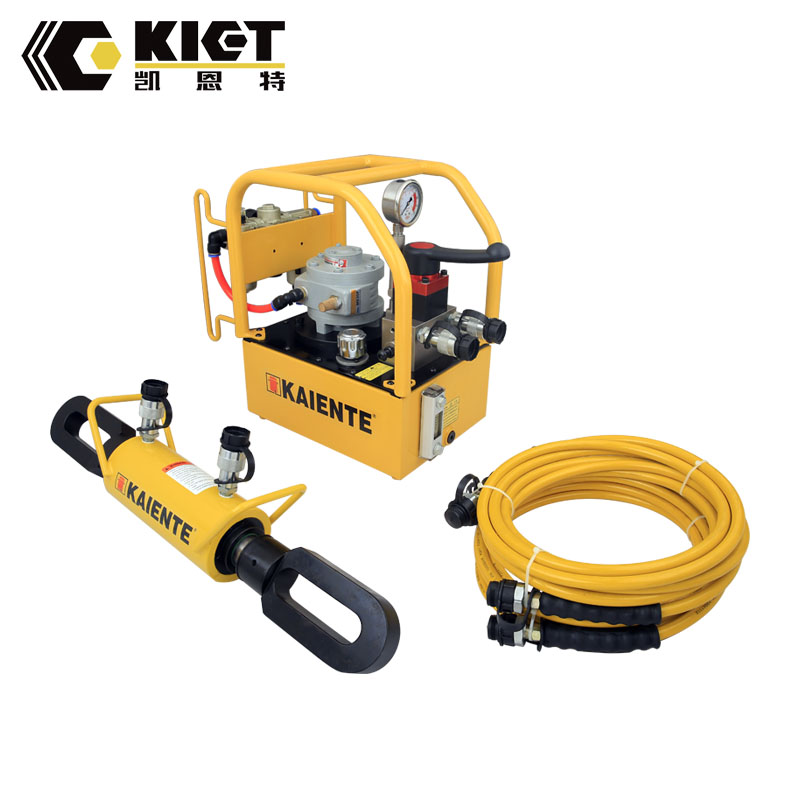

Matched the use with electric hydraulic pump



Product Features

Double acting, hydraulic return

Pull type design, suitable for stretching and folding operation.

Both ends with earrings, easy to connect with the object.

Built in safety valve to prevent over pressure.

Scraper seal reduces contamination, extending cylinder life.

Optional lifting valve group, to ensure the safety and steady of lifting.

3/8 “- 18NPT coupler and dust cap included on all models.



Technical Parameters

Model	Capacity	Stroke	Max. Capacity		Effective Area	Oil Capacity	Coll. Height	Outside Diameter	Weight
	Ton	mm	Push(kN)	Pull(kN)	（cm2）	（cm3）	（mm）	（mm）	（kg）
KET-BRL-252	25	50	533	264	37.8	380	265	130	21.1
KET-BRL-254		100	533	264	37.8	761	315	130	24.8
KET-BRL-256		150	533	264	37.8	1141	365	130	28.5
KET-BRL-258		200	533	264	37.8	1522	415	130	32.2
KET-BRL-2510		250	533	264	37.8	1902	465	130	35.9
KET-BRL-2512		300	533	264	37.8	2283	515	130	40.5
KET-BRL-502	45	50	932	433	61.8	665	183	165	45.2
KET-BRL-504		100	932	433	61.8	1331	233	165	51.1
KET-BRL-506		150	932	433	61.8	1996	283	165	57.0
KET-BRL-508		200	932	433	61.8	2662	333	165	62.9
KET-BRL-5010		250	932	433	61.8	3327	570	165	68.8
KET-BRL-5012		300	932	433	61.8	3993	433	165	74.7
KET-BRL-702	70	50	1386	667	95.3	990	200	205	73.1
KET-BRL-704		100	1386	667	95.3	1979	250	205	82.3
KET-BRL-706		150	1386	667	95.3	2969	300	205	91.4
KET-BRL-708		200	1386	667	95.3	3959	350	205	100.6
KET-BRL-7010		250	1386	667	95.3	4948	400	205	109.7
KET-BRL-7012		300	1386	667	95.3	5938	450	205	118.9
KET-BRL-1002	100	50	2563	1064	152.0	1830	275	275	162
KET-BRL-1006		150	2563	1064	152.0	5491	375	275	198
KET-BRL-10012		300	2563	1064	152.0	10983	525	275	251

<!–

–>

---









---

Product detail pictures:

---

Related Product Guide:

---

We are also specializing in improving the things management and QC method in order that we could retain terrific edge inside the fiercely-competitive small business for Reasonable price 30 Ton Hydraulic Cylinder - Double Acting High Tonnage Pull Cylinder (BRL Series) – Canete , The product will supply to all over the world, such as: Grenada, Zimbabwe, Stuttgart, Our company now has many department, and there have more than 20 employees in our company. We set up sales shop, show room, and product warehouse. In the meantime, we registered our own brand. We have tightened inspection for quality of product.
