High Quality Long Stroke Hydraulic Cylinders - Single Acting Low Height Hydraulic Cylinder (RCS Series) – Canete Detail:

Product Features

Single acting, spring return

High strength alloy steel for durability

Lightweight, low profile design for use in confined spaces

Baked enamel finish for increased corrosion resistance

Grooved plunger ends require no saddle

Plunger wiper reduces contamination, extending cylinder life

Integral handle on KET-RCS-1002 for easy carrying

3/8 “- 18NPT coupler and dust cap included on all models



Industry Applications

Synchronous lifting to replace the rubber bearing for bridge maintenance

Synchronous lifting to replace the rubber bearing for high speed rail maintenance

Installation and adjustment of shipyard marine diesel engine

Synchronous lifting of steam turbine maintenance in thermal power plant

Simultaneous separation of speed reducer and roller press maintenance in cement plant

Lifting operation of large equipment installation and maintenance







 Technical Parameters

Model	Working Pressure	Capacity	Collapsed Height	Stroke	Effective Area	Oil Capacity	Ext.Height	Outside Diameter	Plunger Diameter	Weight
	（MPa）	(T)	(mm)	(mm)	(cm2)	(cm3)	(mm)	(mm)	(mm)	(kg)
KET-RCS-101	70	10	88	38	14.5	55	126	69	38.1	4.1
KET-RCS-201	70	20	98	45	28.7	129	143	92	50.8	5.0
KET-RCS-302	70	30	117	62	42.1	261	179	101	66.5	6.8
KET-RCS-502	70	50	122	60	62.1	373	182	124	69.8	10.9
KET-RCS-1002	70	100	141	57	126.7	722	198	165	92.2	22.7
KET-RCS-1502	70	150	130	44	196	862	174	204	115	33.9
KET-RCS-2500	70	250	155	50	346	1730	205	275	185	63
KET-RCS-3000	70	300	200	60	433	2601	260	297	210	95

<!–

–>

---







---

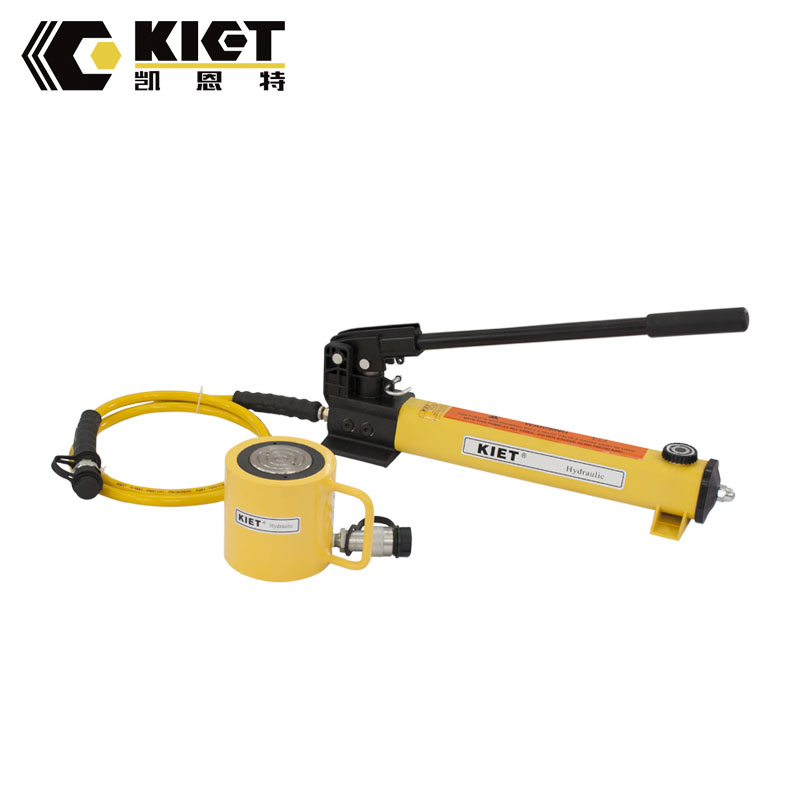

Product detail pictures:

---
