Heavy Duty Long Distance Pushing Hydraulic Equipment
Heavy Duty Long Distance Pushing Hydraulic Equipment

Heavy Duty Long Distance Pushing Hydraulic Equipment

Short Description:

Single device capacity: 100-1000T
Synchronous sliding speed: 0-1m/min
Synchronous positioning accuracy: ±1mm
Heavy load lifting stroke: 200mm
Single pushing distance: 200-1000mm
Online connection mode: bus communication


  • :
  • Where to Buy

    For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

    Where to Contact

    For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

    Each load-bearing device has a maximum lifting capacity of 1,000 tons, and the system can be connected to a maximum of 100 devices for simultaneous synchronization control


    With synchronous positioning accuracy up to 1mm, all parameters can be set in the master control room according to needs of the working conditions.


    Modern communication bus networking mode, electromechanical fluid integration design; each load bearing equipment is a complete hydraulic, mechanical and electrical control unit.


    Adopt heavy-duty sliding method to ensure that there is no possibility of instability or falling in the vertical direction, which is safe and reliable.


    Real-time monitoring by displacement sensors and pressure sensors to ensure on-site data construction.


    All pipelines are quickly plugged and unplugged; and on-site operation is simple and convenient.

    Specs& Dims

    Model Sliding Beam Push-Pull Device
    CapacityT Min. Heightmm Strokemm Weightkg CapacityT Strokemm
    KET-VSS-100 100 645 150 585 100/50 600
    KET-VSS-150 150 905 250 1000 150/75 600
    KET-VSS-300 300 1355 400 3211 300/150 1250
    KET-VSS-500 500 1485 600 4761 500/250 1250
    KET-VSS-800 800 1542 600 8000 800/400 1250
    KET-VSS-1000 1000 1462 600 11600 1000/500 1250

    Applications

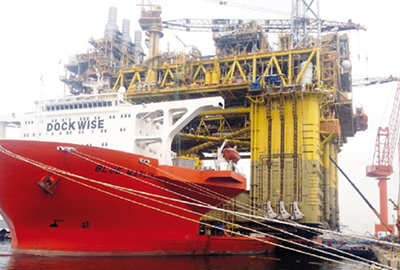

    Synchronous lifting and loading of oil dig<br /><br /><br /><br />
Synchronous sliding of LPG regasification device<br /><br /><br /><br />
Synchronous sliding of caisson in the construction of undersea tunnel<br /><br /><br /><br />
    Synchronous lifting and loading of oil dig Synchronous sliding of LPG regasification device Synchronous sliding of caisson in the construction of undersea tunnel
