Factory wholesale Engine Driven Hydraulic Power Unit - H Type Hydraulic Press (IPH Series) – Canete Detail:

Technical Parameters

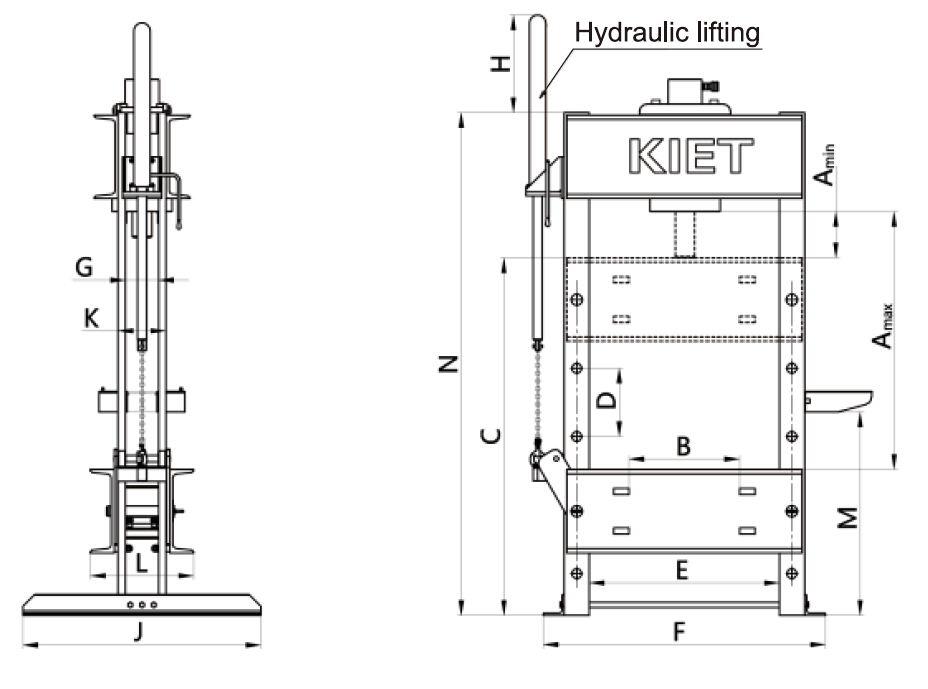

Model	Capacity (T)	Max.Vertical Daylight(mm)	Max.Bed Width(mm)	Cylinder Stroke(mm)	Valve Type	H Type Press Dimensions(mm)														Weight(kg)
						A(Max.)	A(Min.)	B	C	D	E	F	G	H	J	K	L	M	N
KET-IPE-1215	10	1016	473	254	Manual valve electric pump	1016	62	-	1187	127	473	632	-	-	755	108	189	889	1320	135
KET-IPA-1220					Manual valve pneumatic pump															72
KET-IPH-1240					Hand pump															71
KET-IPH-1234					Hand pump															85
KET-IPA-1244					Manual valve pneumatic pump															73
KET-IPE-2505	25	1365	736	152	Manual valve electric pump	1365	160	-	1465	301	736	1002	101	336	762	133	271	705	1930	274
KET-IPE-2510				155	Solenoid valve electric pump															313
KET-IPA-2520				355	Manual valve pneumatic pump															276
KET-IPH-2531				355	Hand pump															281
KET-IPA-3071	30	1365	736	355	Manual valve pneumatic pump	1365	160	-	1465	301	736	1002	101	336	762	133	271	705	1930	310
KET-IPE-3060					Solenoid valve electric pump															325
KET-IPH-3080					Hand pump															301
KET-IPE-5010	50	1247	730	330	Solenoid valve electric pump	1247	190	430	1440	280	730	1070	127	222	914	184	357	840	1930	495
KET-IPA-5021				152	Manual valve pneumatic pump															439
KET-IPH-5030				152	Hand pump															439
KET-IPH-5031				152	Hand pump															420
KET-IPE-5005				152	Manual valve electric pump															421
KET-IPA-5073				330	Manual valve pneumatic pump															479
KET-IPE-5060				330	Solenoid valve electric pump															499
KET-IPH-5080				330	Hand pump															455
KET-IPA-10023	100	1079	889	254	Manual valve pneumatic pump	1079	177	508	295	296	889	1295	71	222	914	222	395	841	1930	751
KET-IPE-10010				254	Solenoid valve electric pump															776
KET-IPH-10030				254	Hand pump															751
KET-IPE-10060				330	Solenoid valve electric pump															816
KET-IPH-10080				152	Hand pump															755
KET-IPE-15065	150	1231	1219	330	Solenoid valve electric pump	1231	317	711	1384	254	1219	1706	231	333	1117	333	555	1212	2286	1794
KET-IPE-20065	150	1231	1219	330	Solenoid valve electric pump	1231	317	711	1384	254	1219	1706	231	333	1117	333	555	1212	2286	1794

<!–

–>

---







---

Product detail pictures:

---
