2021 Good Quality Torque Multiplier Tool - Special Hydraulic Nut for Bearing Assembling and Disassembling – Canete Detail:

Product Descriptions

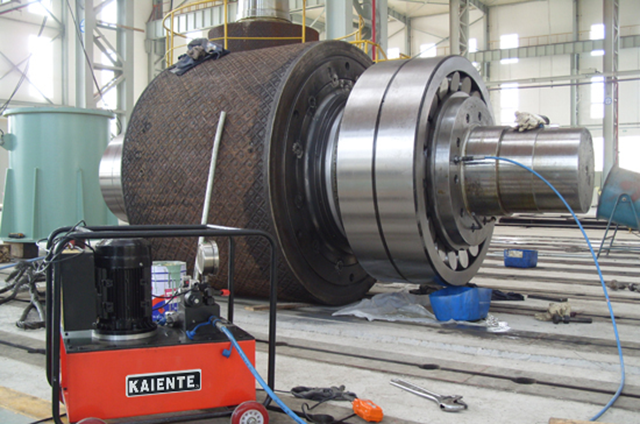

The installation and dismounting on the tapered shaft and the bearing on the shaft sleeve is a difficult and time-consuming task. Using hydraulic nut, can obtain high pressure driving force required for mounting bearing, thus make the bearing assembly and disassembly more easily and quickly. All hydraulic nuts are equipped with ultra high pressure hydraulic pump and quick coupler.

Using the axial and radial oil injection two ways, without space restrictions. Optional electric, pneumatic, manual hydraulic pump as a power source according to user requirements

Technical Parameters

Model	Bolt size (A)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Stroke (mm)	Area mm2	Weight (kg)
KET-50 -1.5	50×1.5	50.5	104	114	38	4	5	2900	2.7
KET-55-2	55×2	55.5	109	120	38	4	5	3150	2.75
KET-60-2	60×2	60.5	115	125	38	5	5	3300	2.8
KET-65 -2	65×2	65.5	121	130	38	5	5	3600	3
KET-70-2	70×2	70.5	127	135	38	5	5	3800	3.2
KET-75-2	75×2	75.5	132	140	38	5	5	4000	3.4
KET-80-2	80×2	80.5	137	146	38	5	5	4200	3.7
KET-85-2	85×2	85.5	142	150	38	5	5	4400	3.75
KET-90-2	90×2	90.5	147	156	38	5	5	4700	4
KET-95-2	95×2	95.5	153	162	38	5	5	4900	4.3
KET-100-2	100×2	100.5	158	166	38	6	5	5100	4.4
KET-105-2	105×2	105.5	163	172	38	6	5	5300	4.65
KET-110-2	110×2	110.5	169	178	38	6	5	5600	4.95
KET-115-2	115×2	115.5	174	182	38	6	5	5800	5
KET-120-2	120×2	120.5	179	188	38	6	5	6000	5.25
KET-125-2	125×2	125.5	184	192	38	6	5	6200	5.35
KET-130-2	130×2	130.5	190	198	38	6	5	6400	5.65
KET-135-2	135×2	135.5	195	204	38	6	5	6600	5.9
KET-140-2	140×2	140.5	200	208	38	7	5	6800	6
KET-145-2	145×2	145.5	206	214	39	7	5	7300	6.5
KET-150-2	150×2	150.5	211	220	39	7	5	7500	6.6
KET-155-3	155×3	155.5	218	226	39	7	5	8100	6.95
KET-160-3	160×3	160.5	224	232	40	7	6	8600	7.6
KET-165 -3	165×3	165.5	229	238	40	7	6	8900	7.9
KET-170-3	170×3	170.5	235	244	41	7	6	9400	8.4
KET-180-3	180×3	180.5	247	256	41	7	6	10300	9.15
KET-190-3	190×3	191	259	270	42	8	7	11500	10.5
KET-200-3	200×3	201	271	282	43	8	8	12500	11.5
KET-205×4	Tr205×4	207	276	288	43	8	8	12800	12
KET-210×4	Tr210×4	212	282	294	44	8	9	13400	12.5
KET-215 ×4	Tr215×4	217	287	300	44	8	9	13700	13
KET-220×4	Tr220×4	222	293	306	44	8	9	14400	13.5
KET-225×4	Tr225×4	227	300	312	45	8	9	15200	14.5
KET-230×4	Tr230×4	232	305	318	45	8	9	15500	14.5
KET-235×4	Tr235×4	237	311	326	46	8	10	16200	16
KET-240×4	Tr240×4	242	316	330	46	9	10	16500	16
KET-250×4	Tr250×4	252	329	342	46	9	10	17600	17.5
KET-260×4	Tr260×4	262	341	356	47	9	11	18800	19.5
KET-270×4	Tr270×4	272	352	368	48	9	12	19800	20.5
KET-280 ×4	Tr280×4	282	363	380	49	9	12	21100	22
KET-290 ×4	Tr290×4	292	375	390	49	9	13	22400	22.5
KET-300×4	Tr300×4	302	386	404	51	10	14	23600	25.5
KET-310×4	Tr310×4	312	397	416	52	10	14	24900	27
KET-320×4	Tr320×4	322	409	428	53	10	14	26300	29.5
KET-330×4	Tr330×4	332	419	438	53	10	14	27000	30
KET-340×4	Tr340×4	342	430	450	54	10	14	28400	31.5
KET-345×4	Tr345×4	347	436	456	54	10	14	29400	32.5
KET-350×4	Tr350×4	352	442	464	56	10	14	29900	35
KET-360×4	Tr360×4	362	455	472	56	11	15	31300	35.5
KET-365×4	Tr365×4	367	460	482	57	11	15	31700	38.5
KET-370 ×4	Tr370×4	372	466	486	57	11	16	32800	39
KET-380×4	Tr380×4	382	476	498	58	11	16	33500	40.5
KET-385×4	Tr385×4	387	483	504	58	11	16	34700	41
KET-400 ×4	Tr400×4	402	499	522	60	11	17	36700	45.5
KET-410×4	Tr410×4	412	510	534	61	11	17	38300	48
KET-420×4	Tr420×4	422	522	546	61	11	17	40000	50
KET-430 ×4	Tr430×4	432	532	556	62	12	17	40800	52.5
KET-440×4	Tr440×4	442	543	566	62	12	17	42500	54
KET-450×4	Tr450×4	452	554	580	64	12	17	44100	57.5
KET-460×4	Tr460×4	462	565	590	64	12	17	45100	60
KET-470×4	Tr470×4	472	576	602	65	12	18	46900	62
KET-480×4	Tr480×4	482	587	612	65	12	19	48600	63
KET-490×4	Tr490×4	492	597	624	66	12	19	49500	66
KET-500×4	Tr500×4	502	609	636	67	12	19	51500	70

Model	Thread M	external diameter D	Stop d1	Stop d2	Height H	B1	Stroke (mm)	Area mm2	Weight (kg)
KET-500×1.5	50×1.5	114	50.5	104	38	4	5	3376	2.7
KET-600×2	60×2	125	60.5	115	38	5	5	4239	2.8
KET-700×2	70×2	135	70.5	127	38	5	5	4710	3.2
KET-800×2	80×2	146	80.5	137	38	5	5	5181	3.7
KET-900×2	90×2	156	90.5	147	38	5	5	5652	4
KET-1000×2	100×2	166	100.5	158	38	6	5	5987	4.4
KET-1100×2	110×2	178	110.5	169	38	6	5	6286	4.95
KET-1200×2	120×2	188	120.5	179	38	6	5	8568	5.25
KET-1300×2	130×2	198	130.5	190	38	6	5	7165	5.65
KET-1400×2	140×2	208	140.5	200	39	7	5	7605	6
KET-1500×2	150×2	220	150.5	211	39	7	6	7736	6.6
KET-1600×3	160×3	232	160.5	224	40	7	6	8002	7.6
KET-1700×3	170×3	244	170.5	235	41	7	6	8669	8.4
KET-1900×3	190×3	270	191	259	42	8	8	9266	10.5
KET-2000×3	200×3	282	201	271	43	8	8	8612	11.5
KET-2100×4	Tr210x4	294	212	282	44	8	9	11728	12.5
KET-2200×4	Tr220x4	306	222	293	44	8	9	11815	13.5
KET-2300×4	Tr230x4	318	232	305	45	8	9	12270	15
KET-2500×4	Tr250x4	342	252	329	46	9	10	13317	17
KET-2800×4	Tr280x4	380	282	363	49	9	12	14683	22
KET-3000×4	Tr300x4	404	302	386	51	10	13	15640	25
KET-4000×4	Tr400x4	522	402	499	60	11	17	20602	45.5
KET-5000×4	Tr500x4	636	502	609	67	12	19	24337	70
KET-6000×4	Tr600x4	748	602	721	73	13	23	28274	100
KET-7100×4	Tr710x4	870	712	840	78	15	25	30730	135
KET-8000×4	Tr800x4	965	802	936	80	16	25	31770	161
KET-9000×4	Tr900x4	1075	902	1043	86	17	30	32848	205
